Equal Tees and Reducing Tees in all grades, all sizes, all schedules. The second most ordered buttweld fitting — available from stock for standard grades and sizes.

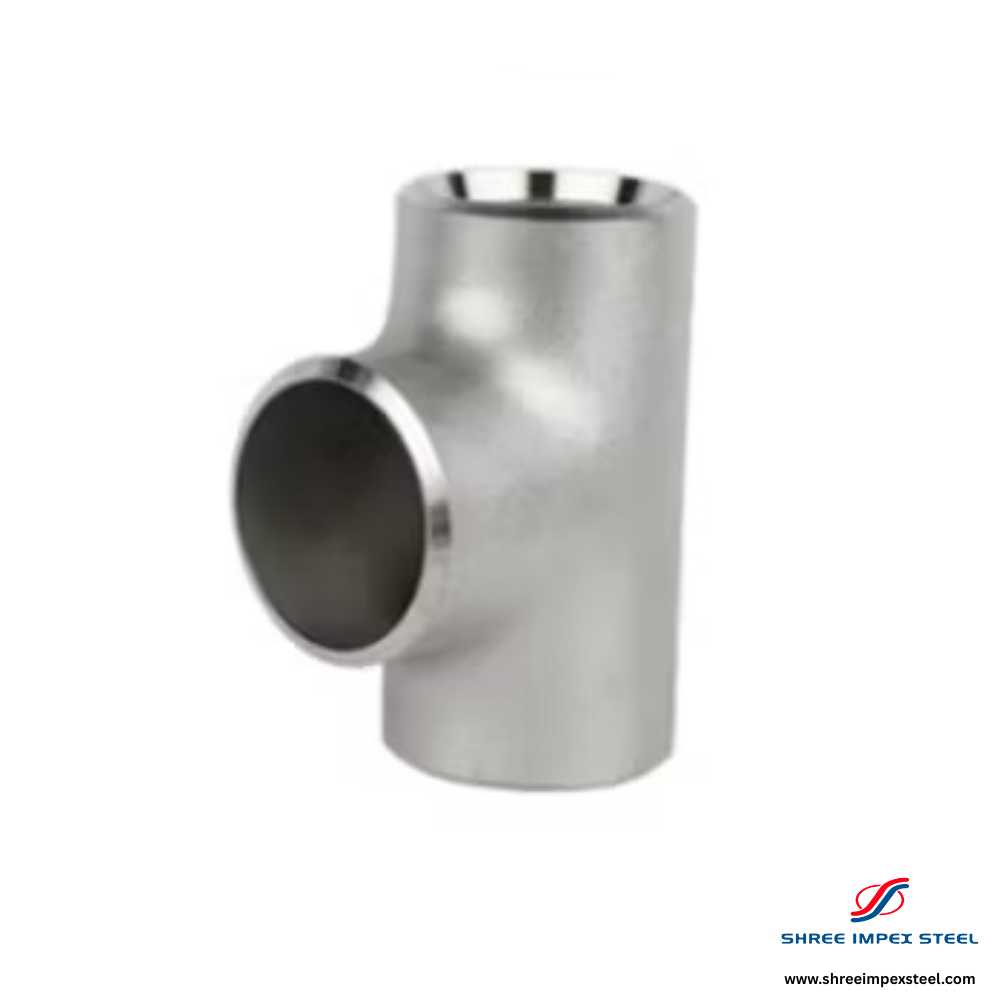

All three outlets are the same size. Used where a full-bore branch connection of the same pipe size is required. The most common tee type — used in headers, distribution systems, and general piping.
The branch outlet is smaller than the run outlets. Specified when a smaller branch connection is needed from a main header — eliminates the need for a full tee plus a reducer. Available in all standard reducing combinations.
| NPS | OD (mm) | C-to-End M (mm) | C-to-End C (mm) | Sch 40 Wall (mm) | Sch 80 Wall (mm) |
|---|---|---|---|---|---|
| ½" | 21.3 | 25 | 25 | 2.77 | 3.73 |
| ¾" | 26.7 | 29 | 29 | 2.87 | 3.91 |
| 1" | 33.4 | 38 | 38 | 3.38 | 4.55 |
| 1½" | 48.3 | 48 | 48 | 3.68 | 5.08 |
| 2" | 60.3 | 57 | 57 | 3.91 | 5.54 |
| 3" | 88.9 | 76 | 76 | 5.49 | 7.62 |
| 4" | 114.3 | 95 | 95 | 6.02 | 8.56 |
| 6" | 168.3 | 143 | 143 | 7.11 | 10.97 |
| 8" | 219.1 | 178 | 178 | 8.18 | 12.70 |
| 10" | 273.1 | 216 | 216 | 9.27 | 15.09 |
| 12" | 323.9 | 254 | 254 | 9.53 | 17.48 |
M = Run (main) dimension · C = Branch dimension. For reducing tees, C dimension varies by branch size.
Send type (equal/reducing), grade, size (run × branch), schedule, quantity. We respond within 4 hours.
