India's most specialized manufacturer & stockist of buttweld pipe fittings to ASME B16.9 and MSS SP-43. 40+ grades from stainless steel to exotic nickel alloys. Ready stock. Worldwide export.
Austenitic stainless steel — the most widely stocked grade family. General purpose to high-temperature service.
The most widely used stainless steel grade. Excellent corrosion resistance in general environments. 304L has lower carbon for improved weld corrosion resistance. Food, pharmaceutical, water, and chemical processing.
Molybdenum-bearing austenitic steel. Superior resistance to chlorides, pitting, and crevice corrosion. Marine, offshore, oil & gas, and pharmaceutical industries.
Titanium-stabilized austenitic steel. Excellent for high-temperature service (425°C–900°C). Resists sensitization. Power plants, aerospace, and exhaust systems.
Niobium-stabilized. Higher creep strength than 321 at elevated temperatures. Refinery furnaces, nuclear reactor components, and high-temperature chemical processing.
Chrome-moly grades for high-temperature, high-pressure, and hydrogen service. Critical power and refinery grades.
1.25% Chromium, 0.5% Molybdenum. Good creep resistance to 540°C. Refineries, hydrogen service piping, and mid-temperature pressure systems.
2.25% Chromium, 1% Molybdenum. Petroleum refineries, hydrogen service, and high-temperature steam systems to 580°C.
9% Chromium, 1% Molybdenum with V+Nb. Premier grade for supercritical power generation steam lines. Higher creep strength than WP22 to 650°C.
5% and 9% Chromium grades. Superior oxidation resistance. Petroleum refining, petrochemical, and high-temperature hydrogen service with sulfur concerns.
Standard carbon steel. The most common grade for general industrial, oil & gas, and construction piping systems. Cost-effective, widely available, ASME B16.9 certified.
Low Temperature Carbon Steel, impact tested for sub-zero service. WPL6 rated to –46°C; WPL3 rated to –101°C. LNG, cryogenic, and arctic service piping.
UNS S31803 / S32205. Two-phase microstructure — higher strength than austenitic stainless. Excellent resistance to stress corrosion cracking and pitting. Offshore, desalination, pulp & paper.
UNS S32750 / S32760. Superior corrosion resistance in highly aggressive chloride environments. Subsea equipment, chemical process, FGD systems, and seawater handling.
Exotic high-performance alloys for the most extreme service conditions.
Nickel-chromium-molybdenum alloy. Outstanding fatigue and tensile strength from cryogenic to 980°C. Jet engines, nuclear reactors, marine exhaust, chemical processing.
Exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking in oxidizing and reducing environments. Chemical process, FGD, pollution control.
Nickel-copper alloy. Resistant to seawater, hydrofluoric acid, and alkaline environments. Marine engineering, chemical plants, offshore platforms.
Copper-nickel with excellent biofouling resistance and seawater corrosion resistance. Naval systems, offshore platforms, desalination, condensers, and heat exchangers.
All manufactured to ASME B16.9 / MSS SP-43. Available in every grade listed above.
| Material | Grade / UNS | ASTM Spec | Standard | Size Range | Schedule | Temp Range | Application |
|---|---|---|---|---|---|---|---|
| Stainless Steel Buttweld Fittings | |||||||
| SS 304 | WP304 / WP304W | ASTM A403 | ASME B16.9 | ½"–48" | Sch 5–XXS | –195°C to 815°C | General, Food, Chemical |
| SS 304L | WP304L / WP304LW | ASTM A403 | ASME B16.9 | ½"–48" | Sch 5–XXS | –195°C to 815°C | Welded, Sensitization resist. |
| SS 316 | WP316 / WP316W | ASTM A403 | ASME B16.9 | ½"–48" | Sch 5–XXS | –195°C to 870°C | Marine, Oil & Gas |
| SS 316L | WP316L / WP316LW | ASTM A403 | ASME B16.9 | ½"–48" | Sch 5–XXS | –195°C to 870°C | Pharma, Offshore |
| SS 321 / 321H | WP321 / WP321H | ASTM A403 | ASME B16.9 | ½"–24" | Sch 10–XXS | –195°C to 900°C | Power plants, Aerospace |
| SS 347 / 347H | WP347 / WP347H | ASTM A403 | ASME B16.9 | ½"–24" | Sch 10–XXS | Up to 900°C | Refineries, Nuclear |
| SS 310S | WP310S | ASTM A403 | ASME B16.9 | ½"–24" | Sch 10–XXS | Up to 1150°C | Furnaces, Extreme heat |
| Carbon Steel & Low-Temp Buttweld Fittings | |||||||

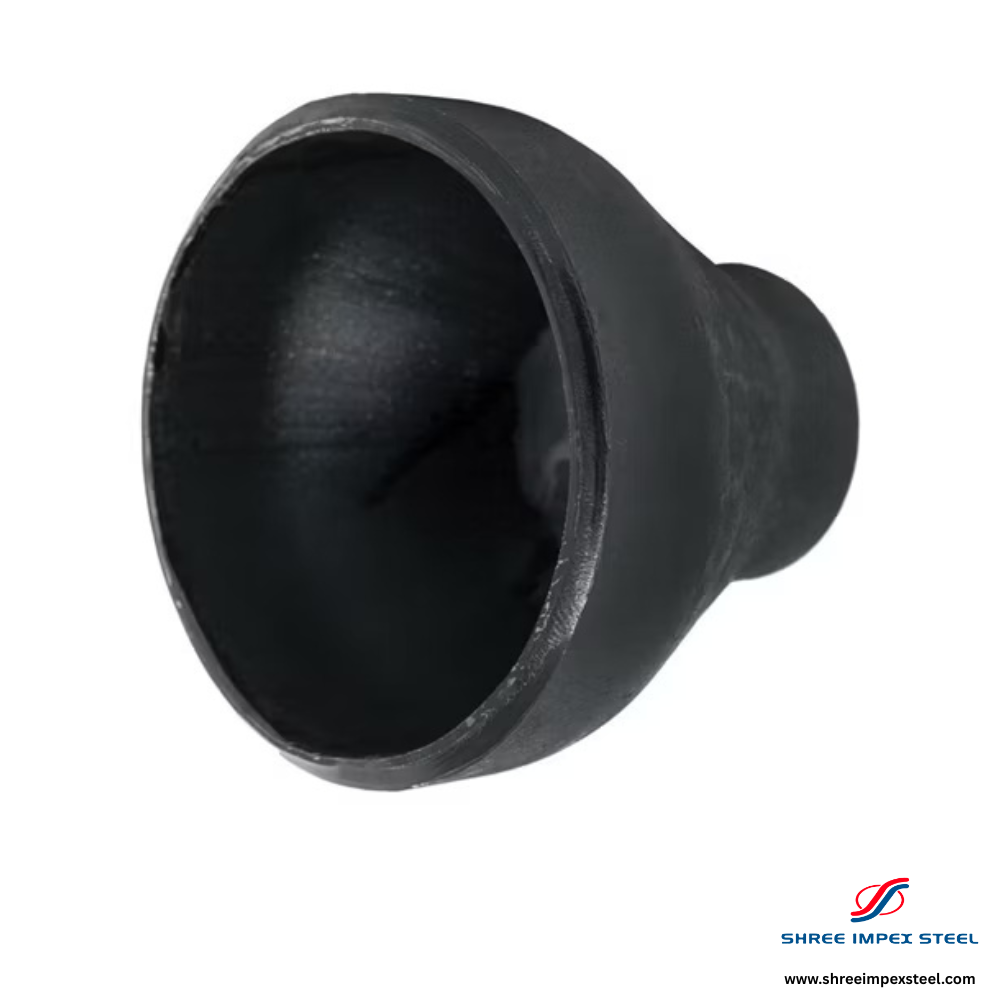

| Carbon Steel | WPB | ASTM A234 | ASME B16.9 | ½"–48" | Sch 10–XXS | –29°C to 430°C | General, Oil & Gas |
| LTCS | WPL6 | ASTM A420 | ASME B16.9 | ½"–24" | Sch 10–XXS | –46°C to 345°C | LNG, Cryogenic |
| LTCS | WPL3 | ASTM A420 | ASME B16.9 | ½"–24" | Sch 10–XXS | –101°C to 345°C | Arctic, LNG |
| Alloy Steel Buttweld Fittings | |||||||
| Alloy Steel | WP11 / WP11CL1 | ASTM A234 | ASME B16.9 | ½"–24" | Sch 10–XXS | –30°C to 540°C | Refineries, H₂ service |
| Alloy Steel | WP22 / WP22CL1 | ASTM A234 | ASME B16.9 | ½"–24" | Sch 10–XXS | –30°C to 580°C | Petroleum refinery |
| Alloy Steel | WP91 | ASTM A234 | ASME B16.9 | ½"–24" | Sch 10–XXS | Up to 650°C | Power generation, SC steam |
| Alloy Steel | WP5 / WP9 | ASTM A234 | ASME B16.9 | ½"–24" | Sch 10–XXS | Up to 600°C | Refineries, H₂ sulfide |
| Duplex, Nickel & Copper Alloy Buttweld Fittings | |||||||

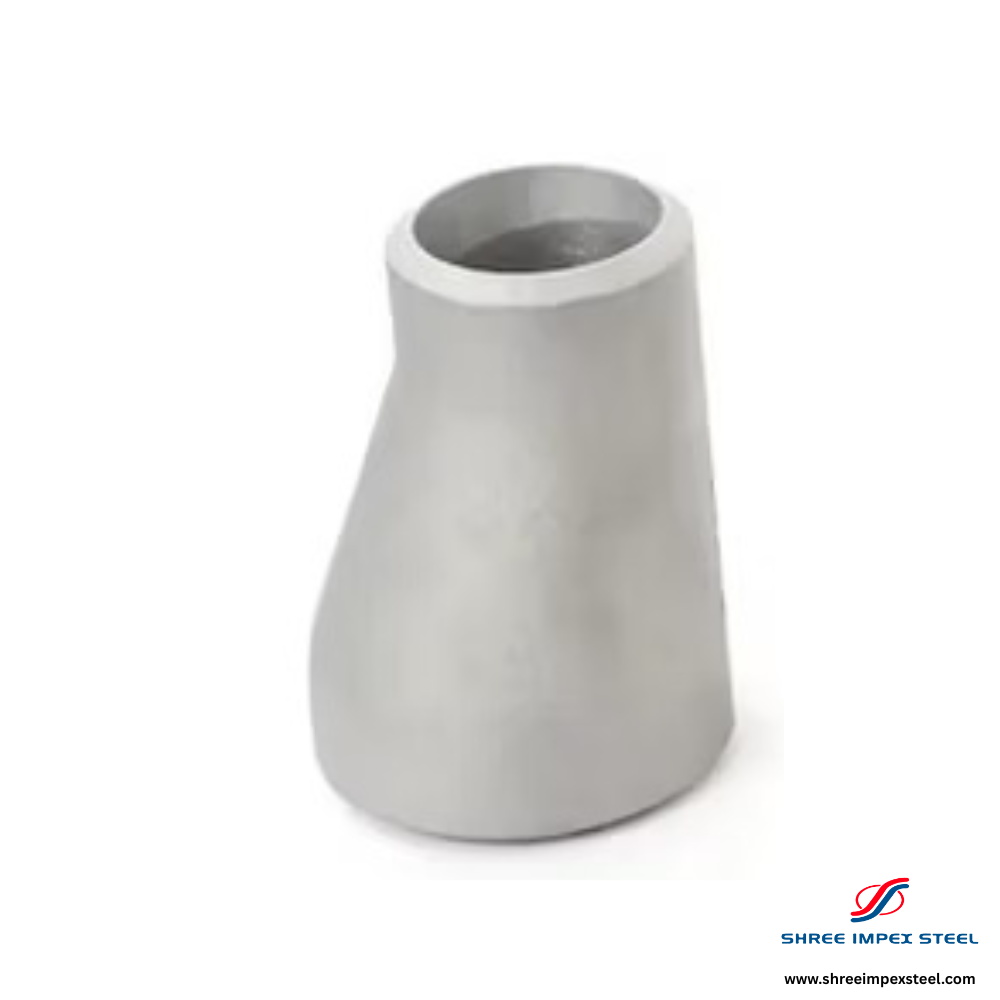

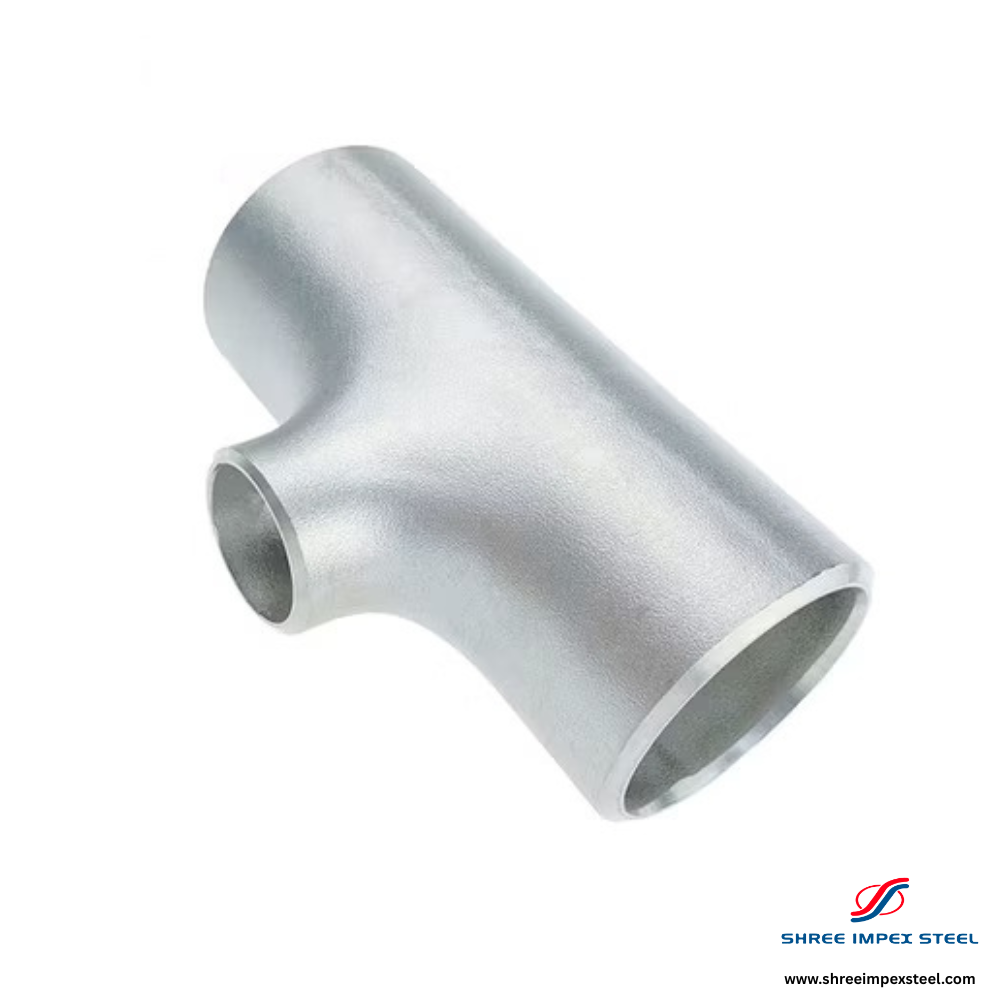

| Duplex 2205 | WPS31803 / S32205 | ASTM A815 | ASME B16.9 | ½"–24" | Sch 10–XXS | –50°C to 280°C | Offshore, Desalination |
| Super Duplex 2507 | WPS32750 / S32760 | ASTM A815 | ASME B16.9 | ½"–24" | Sch 10–XXS | –50°C to 280°C | Subsea, FGD |
| Inconel 625 | WPNCI8225 (N06625) | ASTM B366 | ASME B16.9 | ½"–12" | Sch 10–XXS | –195°C to 980°C | Nuclear, Aerospace |
| Hastelloy C276 | WPNC2M (N10276) | ASTM B366 | ASME B16.9 | ½"–12" | Sch 10–XXS | –195°C to 760°C | Chemical, FGD, Acids |
| Monel 400 | WPNICM (N04400) | ASTM B366 | ASME B16.9 | ½"–12" | Sch 10–XXS | –195°C to 480°C | HF acid, Seawater |
| CuNi 90/10 | WPCN107 (C70600) | ASTM B366 | ASME B16.9 | ½"–12" | Sch 10–80 | Up to 260°C | Naval, Offshore |
| CuNi 70/30 | WPCN702 (C71500) | ASTM B366 | ASME B16.9 | ½"–12" | Sch 10–80 | Up to 260°C | Condensers, Heat exchangers |
ASME B16.9 covers factory-made wrought buttwelding fittings in standard schedules (Sch 10 to XXS) for carbon, alloy, and stainless steel grades. MSS SP-43 covers lightweight stainless steel buttwelding fittings — typically thinner wall (Sch 5S and 10S) — used in sanitary, chemical, and pharmaceutical applications. The choice depends on wall thickness and service pressure requirements.
We provide EN 10204 3.1 Mill Test Certificate (MTC) with full chemical composition and mechanical properties. On request: PMI (Positive Material Identification) test reports, dimensional inspection reports, hydro test certificates, radiography (RT) or ultrasonic (UT) test reports, IBR certificates, and NACE MR0175 compliance letters. All documents carry heat number traceability.
WP22 (2.25Cr-1Mo) is suitable for temperatures up to approximately 580°C and is widely used in conventional power plants. WP91 (9Cr-1Mo-V) is preferred for supercritical and ultra-supercritical steam service at temperatures up to 650°C. WP91 has significantly higher creep strength than WP22 at elevated temperatures. For new power plant projects with steam above 570°C, WP91 is the modern standard.
Yes. We manufacture buttweld fittings to customer-supplied drawings and specifications. This includes non-standard sizes, special wall thicknesses, custom end preparation, unusual angles, and proprietary material grades. Minimum order quantities apply for custom manufacturing. Please share your drawings or specifications for a manufacturing feasibility assessment and quotation.
Super Duplex 2507 (S32750) has higher chromium (25%), molybdenum (4%), and nitrogen content than Duplex 2205 (S31803). This gives Super Duplex a PREN above 42 vs above 35 for Duplex 2205 — significantly better pitting and crevice corrosion resistance. Super Duplex is chosen for deepwater subsea systems and highly aggressive chloride environments; Duplex 2205 for offshore topsides and desalination.
Yes, we regularly export to 50+ countries. Key markets include UAE, Saudi Arabia, Qatar, Kuwait, Oman, USA, Canada, UK, Germany, Italy, Norway, Singapore, Malaysia, Indonesia, South Africa, Nigeria, Kenya, Egypt, Australia, and Brazil. We handle all export documentation including commercial invoice, packing list, COO, pre-shipment inspection, and Letter of Credit from Mumbai port.
Share your requirement — grade, type, size, quantity, standard. We respond within 4 hours with best pricing.
